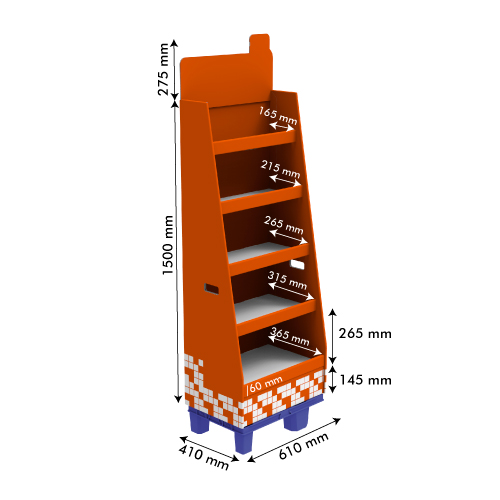

Outer overall dimensions:
width: 600 mm
depth: 400 mm
height: 1500 mm (without header)
standard header: 600x275 mm
Inner shelf dimensions: (numbered shelves from top to bottom)
s1: 165 x 575 mm
s2: 215 x 575 mm
s3: 265 x 575 mm
s4: 315 x 575 mm
s3: 365 x 575 mm
Distance between shelves: 220mm
Maximum shelf load: 10 kg
Material: corrugated cardboard 5 mm
Print: front, sides, header front side (orange areas)
Packing
Individual box: 600 x 1500 x 80 mm - 5 kg
One pallet: 20 pcs, 120 kg, 800x1200x1650 mm [the pallet height may vary, depending on the specific truck requirements]
What is included in the price:
- the flat folded display individually packed in a brown carton box,
- assembly instructions,
- 9 plastic rivets needed for manual assembly,
- 5 clear shelf liners to attach price labels.
- pallet packaging.
Optionals (not included in the prices):
- header in different shape & format
- clear plastic bottom tray against humidity
- printing on any sides of the display (back)
